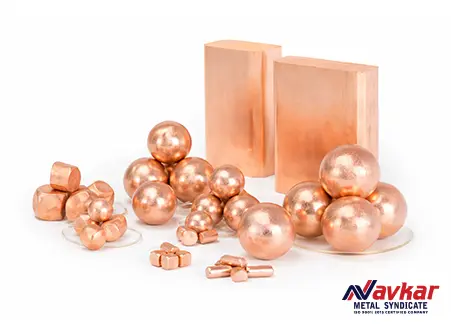

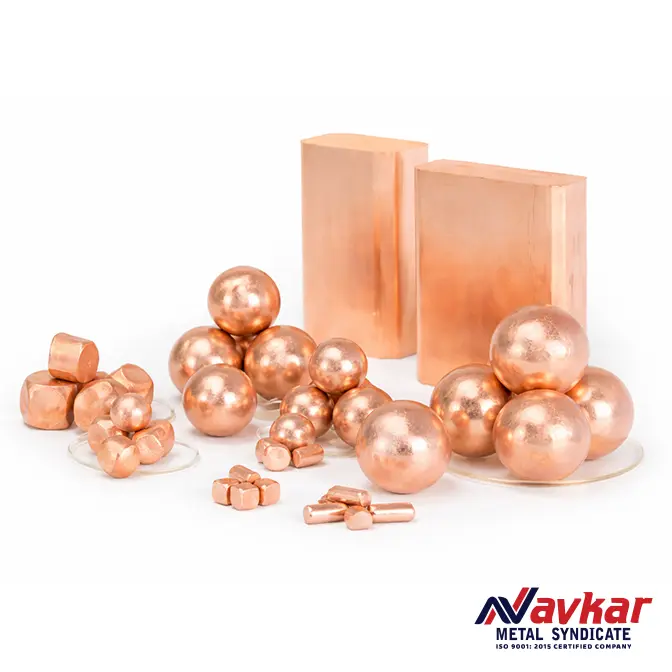

Phosphorized Copper Anodes
Our Products
Our Brochure
Phosphorized Copper Anodes Brochure
Download
Descriptions
Navkar Metal Syndicate supplies high-quality Phosphorized Copper Anodes that are manufactured from high-purity electrolytic copper cathodes with controlled phosphorus content. These anodes are widely used in electroplating, printed circuit board (PCB) manufacturing, and surface finishing industries, ensuring consistent performance, minimal sludge generation, and superior cathode deposition.
Our anodes are precisely cast and processed to achieve uniform grain structure, excellent dissolution rate, and stable electrical conductivity, making them ideal for acid copper plating baths.
Applications
- Acid copper electroplating (decorative and functional)
- Printed Circuit Board (PCB) and semiconductor manufacturing
- Rotogravure and electroforming processes
- Electro-refining and electro-winning operations
- Base layers for decorative chrome and nickel plating
Grades & Standards
- UNS C12200 – Phosphorized, deoxidized high residual phosphorus copper
- UNS C12500 / C12700 – Controlled phosphorus, improved conductivity
- Standards: ASTM B152 / B170 / IS 14811 / EN 1976
Chemical Composition (Typical %)
| Element | Min | Max |
|---|---|---|
| Copper (Cu) | 99.90 | — |
| Phosphorus (P) | 0.02 | 0.06 |
| Oxygen (O) | — | 0.04 |
| Other Impurities | — | 0.03 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 200 – 250 MPa |
| Elongation | Min. 35% |
| Hardness | 45 – 65 HV |
| Density | 8.94 g/cm³ |
| Electrical Conductivity | 90 – 95% IACS |
Key Features
- Uniform dissolution and low sludge formation
- Stable phosphorus content for consistent anode performance
- Excellent electrical and thermal conductivity
- Superior grain structure and minimal porosity
- Longer anode life with reduced maintenance
Available Forms
- Ball or Nugget Anodes (10 mm – 25 mm)
- Flat & Plate Anodes (custom dimensions)
- Basket Anodes for PCB lines
- Customized shapes as per customer requirements
Available Shapes & Dimensions
All dimensions are in millimeters (mm). Other shapes and custom sizes available on request.
| Shape | Dimensions (Dia. / Thickness × Width × Length) | |||
|---|---|---|---|---|
| Balls (Dia.) | 15 | 25 | — | |
| Slugs (Dia.) | 8×15 | 12×8 | 14×10 | 25×25 |
| 8×20 | 12×10 | 14×20 | 25×30–40 | |
| — | 12×10 | — | — | |
| Plates | 25×10×L | 100×10×L | 152×19×L | 175×15×L |
| 60×12×L | 100×15×L | 152×15×L | 200×10×L | |
| 80×12×L | 100×20×L | 158×12×L | 200×12×L | |
| 80×15×L | 130×19×L | 170×15×L | 200×20×L | |
All Dimensions; ask for other shapes and sizes.
