Descriptions

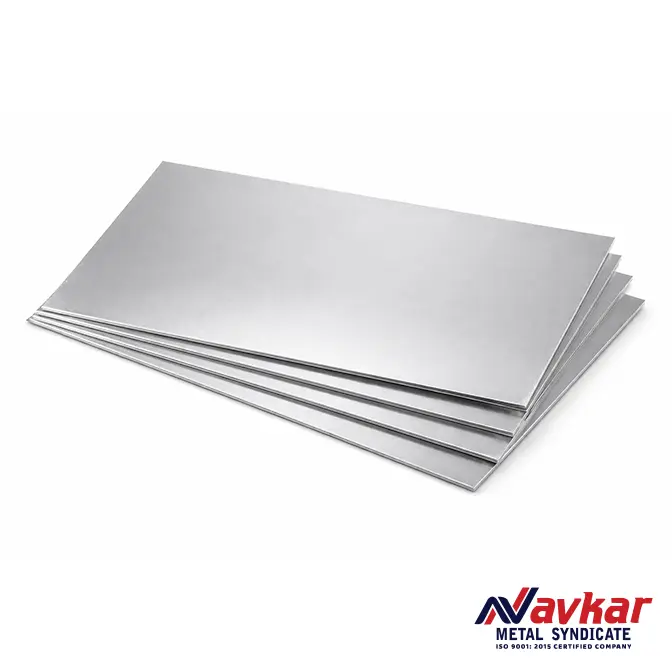

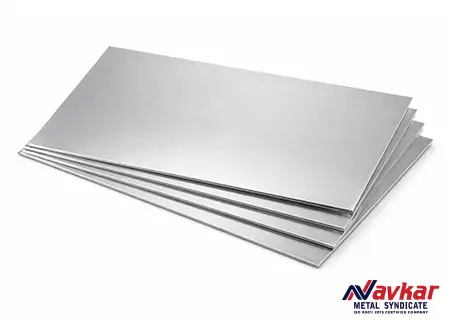

Navkar Metal Syndicate is a leading manufacturer, stockist, and exporter of Aluminium Sheets in a wide range of alloys and tempers. Our aluminium sheets are produced from high-grade billets and rolled to precise tolerances, ensuring excellent surface finish, mechanical strength, and corrosion resistance. These sheets are widely used in industrial, architectural, marine, and aerospace applications.
We supply aluminium sheets in commercial purity grades such as AA1100, 1200, 3003, as well as high-strength alloys like 5052, 5083, 6061, 6082, and 7075. Available in O (soft), H14, H32, T6, and T651 tempers, our sheets can be supplied with mill finish, brushed, anodized, or coated surfaces based on customer requirements.
- Thickness Range: 0.2 mm to 200 mm
- Width Range: Up to 2500 mm (standard width 1000 / 1220 / 1500 mm)
- Length Range: Up to 6000 mm (custom cut-to-length available)
- Tempers Available: O, H12, H14, H16, H32, H34, T4, T6, T651
- Surface Finish: Mill Finish, Bright, Stucco Embossed, Anodized, Coated, Mirror, PVC Coated
Key Features
- Lightweight, strong, and corrosion-resistant for long-term use
- Excellent weldability, machinability, and formability
- High reflectivity and thermal conductivity
- Compatible with anodizing and powder coating
- Ideal for fabrication, roofing, automotive panels, and marine applications
Available Grades
1100, 1200, 19000, 3003, 3105, 5005, 5052, 5083, 5086, 6061, 6063, 6082, 7005, 7075 (Equivalent to ASTM B209 / EN AW / IS 736 standards)
Applications
- Architectural cladding, roofing, and façade systems
- Marine hulls, shipbuilding panels, and offshore structures
- Automotive body panels, truck flooring, and heat shields
- Aerospace and defense components
- Electrical enclosures, signage, and decorative products
- Pressure vessels and heat exchanger panels
Navkar Metal Syndicate also offers customized cutting, surface treatment, and export packaging options to ensure on-time delivery and superior quality for every order. We deliver across India and export globally to major markets in Europe, the Middle East, and Asia-Pacific.
Chemical Composition
The chemical composition of Aluminium Sheets supplied by Navkar Metal Syndicate varies according to alloy type. Below are the typical compositions for the most widely used commercial and engineering grades such as 1100, 3003, 5052, 5083, 6061, 6063, 6082, and 7075. All compositions conform to ASTM B209 / EN 573 / IS 737 standards.
| Alloy / Grade | Cu (%) | Mn (%) | Mg (%) | Si (%) | Fe (%) | Zn (%) | Cr (%) | Ti (%) | Others (%) | Aluminium (Al) (%) |
|---|---|---|---|---|---|---|---|---|---|---|
| AA1100 | 0.05 – 0.20 | 0.05 max | – | 0.95 max | 0.95 max | 0.10 max | – | – | 0.15 max (each) | Remainder |
| AA3003 | 0.05 – 0.20 | 1.0 – 1.5 | – | 0.6 max | 0.7 max | 0.10 max | – | – | 0.15 max (each) | Remainder |
| AA5052 | 0.10 max | 0.10 max | 2.2 – 2.8 | 0.25 max | 0.40 max | 0.10 max | 0.15 – 0.35 | 0.10 max | 0.15 max (each) | Remainder |
| AA5083 | 0.10 max | 0.40 – 1.0 | 4.0 – 4.9 | 0.40 max | 0.40 max | 0.25 max | 0.05 – 0.25 | 0.15 max | 0.15 max (each) | Remainder |
| AA6061 | 0.15 – 0.40 | 0.15 max | 0.8 – 1.2 | 0.4 – 0.8 | 0.7 max | 0.25 max | 0.04 – 0.35 | 0.15 max | 0.15 max (each) | Remainder |
| AA6063 | 0.10 max | 0.10 max | 0.45 – 0.9 | 0.2 – 0.6 | 0.35 max | 0.10 max | 0.10 max | 0.10 max | 0.15 max (each) | Remainder |
| AA6082 | 0.10 max | 0.40 – 1.0 | 0.6 – 1.2 | 0.7 – 1.3 | 0.50 max | 0.20 max | 0.25 max | 0.10 max | 0.15 max (each) | Remainder |
| AA7075 | 1.2 – 2.0 | 0.30 max | 2.1 – 2.9 | 0.4 max | 0.5 max | 5.1 – 6.1 | 0.18 – 0.28 | 0.20 max | 0.15 max (each) | Remainder |
Note: All compositions are nominal and may vary slightly as per ASTM B209 / EN 573 / IS 737 specifications. Custom alloys and special temper combinations (H14, H32, T6, T651, etc.) are also available upon request.
Mechanical, Physical & Fabrication Properties
Navkar Metal Syndicate supplies Aluminium Sheets in a wide range of commercial and high-performance alloys. The tables below summarise typical mechanical, physical and fabrication properties for commonly used grades in sheet form. Values are indicative and may vary with temper, thickness and product standard (ASTM / EN / IS).
Mechanical & Physical Properties (Typical Values for Sheet Alloys)
| Alloy / Grade | Common Tempers (Sheets) |
Tensile Strength (MPa, approx.) |
0.2% Yield Strength (MPa, approx.) |
Elongation (% in 50 mm) |
Hardness (HBW, approx.) |
Density (g/cm³) |
Melting Range (°C) |
|---|---|---|---|---|---|---|---|
| AA1100 | O, H14, H16 | 70 – 120 | 25 – 35 | 25 – 35 | 20 – 35 | 2.71 | 643 – 657 |
| AA3003 | O, H14, H16, H24 | 110 – 200 | 40 – 100 | 10 – 30 | 30 – 55 | 2.73 | 643 – 654 |
| AA5052 | O, H32, H34 | 190 – 260 | 130 – 215 | 7 – 20 | 60 – 80 | 2.68 | 607 – 650 |
| AA5083 | O, H111, H116, H321 | 270 – 340 | 120 – 240 | 10 – 20 | 70 – 95 | 2.66 | 570 – 640 |
| AA6061 | O, T4, T6, T651 | 240 – 310 | 110 – 275 | 8 – 17 | 65 – 100 | 2.70 | 582 – 652 |
| AA6063 | O, T4, T5, T6 | 150 – 240 | 80 – 170 | 8 – 18 | 50 – 80 | 2.70 | 615 – 655 |
| AA6082 | O, T4, T6, T651 | 260 – 340 | 110 – 280 | 8 – 16 | 75 – 100 | 2.70 | 555 – 650 |
| AA7075 | O, T6, T651, T73 | 470 – 560 | 380 – 480 | 5 – 12 | 130 – 160 | 2.81 | 477 – 635 |
Fabrication & Workability Characteristics (Sheets)
| Alloy / Grade | Formability / Bending | Weldability | Machinability | Corrosion Resistance | Typical Sheet Applications |
|---|---|---|---|---|---|
| AA1100 | Excellent – very good for deep drawing and spinning | Excellent (all common processes) | Fair (soft, tends to gum tools) | Good in normal atmospheres | Cladding, reflectors, signage, architectural panels, utensils |
| AA3003 | Excellent – good drawability and forming | Very good | Fair to good | Better than 1100; good in marine/industrial atmospheres | Cookware, chemical tanks, insulation cladding, roofing, HVAC fins |
| AA5052 | Very good – good for moderate forming | Excellent (MIG/TIG, resistance) | Good | Very good, especially in marine environments | Marine panels, fuel tanks, enclosures, transport bodies, architectural sheets |
| AA5083 | Good – stronger, so forming radii needed | Excellent (marine grade weldability) | Good | Outstanding in seawater and aggressive environments | Shipbuilding, offshore structures, cryogenic tanks, pressure vessels |
| AA6061 | Good – best in O/T4; limited in T6 | Very good (post-weld strength reduction in T tempers) | Good – machines cleanly | Good – improved with coatings/anodising | Structural plates, machine bases, jigs & fixtures, automotive & aerospace panels |
| AA6063 | Very good – excellent for bending and shaping | Very good | Good | Good, especially when anodised | Architectural facades, trims, window/door panels, decorative sheet |
| AA6082 | Moderate to good (strong structural alloy) | Good – requires suitable procedure | Good | Good general corrosion resistance | Heavy structural plates, bridges, cranes, offshore decks, transport structures |
| AA7075 | Moderate – limited cold forming; usually machined | Fair to poor (not generally used for welded structures) | Excellent – high-strength machining alloy | Good in normal atmospheres; not for marine service without protection | Aerospace plates, tooling plates, high-strength components, defence applications |
Note: All values are typical for reference only and can vary with thickness, temper and manufacturing route. For project-specific MTC values and guaranteed minimum properties, please refer to the Mill Test Certificates supplied with Navkar Metal Syndicate materials.
Applications
Navkar Metal Syndicate offers a comprehensive range of Aluminium Sheets that serve diverse industries worldwide. Owing to their lightweight, corrosion resistance, formability, and conductivity, these sheets are used across sectors such as construction, marine, automotive, aerospace, electrical, and packaging. Below is a detailed grade-wise and industry-wise application overview.
| Alloy / Grade | Primary Industries | Common Applications |
|---|---|---|
| AA1100 | Architecture, Signage, HVAC, Electrical | Reflectors, nameplates, fan blades, insulation panels, cookware, roofing, and decorative facades where high formability and appearance are needed. |
| AA3003 | Construction, Automotive, Food & Beverage | Roofing sheets, curtain walls, panels, kitchen utensils, chemical tanks, heat exchangers, and cladding where moderate strength and corrosion resistance are essential. |
| AA5052 | Marine, Transportation, Electrical | Boat hulls, marine panels, vehicle bodies, pressure vessels, and fuel tanks — known for its outstanding corrosion resistance in saltwater environments. |
| AA5083 | Shipbuilding, Offshore, Cryogenic | Ship hulls, decks, superstructures, cryogenic vessels, storage tanks, and industrial pressure equipment requiring high strength and seawater resistance. |
| AA6061 | Aerospace, Automotive, Structural Engineering | Aircraft panels, truck frames, machine bases, heat exchangers, and architectural structures due to excellent strength-to-weight ratio and weldability. |
| AA6063 | Architectural, Consumer Goods, Lighting | Window frames, doors, trim panels, furniture, display fixtures, and heat sinks — often anodized for aesthetic finishes and improved surface protection. |
| AA6082 | Structural, Marine, Heavy Machinery | Bridge decking, cranes, transport structures, pressure vessels, and offshore platforms where high mechanical strength is required. |
| AA7075 | Aerospace, Defence, Tooling | Aircraft wings, fuselage panels, tooling plates, defense-grade components, and sports equipment — favored for its very high strength and durability. |
Industry-Wise Applications
- Construction: Cladding, roofing, panels, ceilings, curtain walls, partitions.
- Marine: Ship hulls, decks, storage tanks, engine covers, and offshore components.
- Automotive: Truck bodies, engine covers, trailers, and heat shields.
- Aerospace: Aircraft skins, wings, fuel tanks, and internal paneling.
- Electrical: Bus bars, enclosures, reflectors, and conductors.
- HVAC & Refrigeration: Ducting, heat exchangers, evaporators, condenser fins.
- Food & Packaging: Foil containers, lids, and can bodies.
- General Fabrication: Sign boards, decorative finishes, furniture, and transport containers.
Navkar Metal Syndicate ensures every aluminium sheet meets ASTM B209 / EN 485 / IS 737 quality standards and can be supplied with full traceability and Mill Test Certificates (MTC).
Standards & International Equivalents:
Navkar Metal Syndicate supplies aluminium sheets that comply with major international standards including ASTM, EN, ISO, JIS, IS (Indian), and DIN. Below is a consolidated reference of popular alloy grades and their common international designations for sheet and plate products.
| Alloy / Grade | ASTM / AA Designation (Sheet & Plate) |
EN / European (EN / EN AW) |
ISO / Other Common International Standards |
JIS (Japan) | IS (India) | DIN / Wrought Equivalents |
|---|---|---|---|---|---|---|
| AA 1050 / 1050A | ASTM B209 – 1050 | EN AW-1050A (EN 573 / EN 485) | ISO 6361 – 1050 | JIS H4000 – 1050 | IS 737 – 19000 series (commercial pure) | DIN 3.0255 |
| AA 1100 | ASTM B209 – 1100 | EN AW-1100 | ISO 6361 – 1100 | JIS H4000 – 1100 | IS 737 – 19000 series (1100 equivalent) | DIN 3.0255 / Al99.0 |
| AA 3003 | ASTM B209 – 3003 | EN AW-3003 (EN 573 / EN 485) | ISO 6361 – 3003 | JIS H4000 – 3003 | IS 16208 / IS 737 – 32000 series | DIN 3.0515 / AlMnCu |
| AA 3105 | ASTM B209 – 3105 | EN AW-3105 | ISO 6361 – 3105 | JIS H4000 – 3105 | IS 737 – 31000 series | DIN 3.0517 |
| AA 5005 | ASTM B209 – 5005 | EN AW-5005 | ISO 6361 – 5005 | JIS H4000 – 5005 | IS / equivalent as 5xxx series sheet | DIN AlMg1(B) |
| AA 5052 | ASTM B209 – 5052 | EN AW-5052 (EN 573 / EN 485) | ISO 6361 – 5052 | JIS H4000 – A5052 | IS 19000 / 5xxx marine/commercial series | DIN AlMg2.5 / 3.3527 |
| AA 5083 | ASTM B209 – 5083 | EN AW-5083 (EN 485-2 marine) | ISO 6361 – 5083 | JIS H4000 – A5083 | IS 19000 – marine grade plate | DIN AlMg4.5Mn0.7 / 3.3547 |
| AA 5086 | ASTM B209 – 5086 | EN AW-5086 | ISO 6361 – 5086 | JIS H4000 – A5086 | IS / 5xxx marine series | DIN AlMg4 |
| AA 6061 | ASTM B209 – 6061 | EN AW-6061 | ISO 6361 – 6061 | JIS H4000 – A6061 | IS 64430 / equivalent 6xxx series | DIN AlMg1SiCu / 3.3211 |
| AA 6063 | ASTM B209 (sheet), ASTM B221 (extrusions) – 6063 | EN AW-6063 (EN 573 / EN 755) | ISO 6361 / EN profile standards | JIS H4100 – A6063 | IS 733 / IS 1285 – 6063 sections | DIN AlMg0.7Si / 3.32206 |
| AA 6082 | ASTM B209 – 6082 (where specified) | EN AW-6082 (EN 485, EN 573) | ISO 6361 – 6082 | JIS – (closest to A6000-series structural) | IS – high strength 6xxx series plate | DIN AlSi1MgMn / 3.2315 |
| AA 8011 / 8011A | ASTM B209 / B479 – 8011 (foil & sheet) | EN AW-8011 | ISO foil & sheet specifications | JIS foil / packaging grades | IS – packaging & foil series | DIN 3.0205 / AlFeSi |
Note: Exact standard references may vary with product form (sheet, plate, coil, tread/chequered sheet) and temper (O, H14, H32, T6, etc.). Navkar Metal Syndicate supplies aluminium sheets with full traceability and certification to project-specific codes and customer requirements.
Common Names & International Identifiers
Navkar Metal Syndicate supplies a complete range of Aluminium Sheets under various internationally recognized names and codes. These identifiers differ by standards such as AA (Aluminium Association), UNS, DIN, EN, ISO, and JIS, but refer to equivalent materials with similar chemical and mechanical properties. The following table provides a cross-reference of commonly used commercial names and identifiers.
| Alloy / Grade | Common / Trade Name | UNS Number | EN / DIN Equivalent | JIS Equivalent | Typical Characteristics / Applications |
|---|---|---|---|---|---|
| AA1050 / 1050A | Commercially Pure Aluminium | A91050 | EN AW-1050A / DIN 3.0255 | A1050P | Excellent formability, electrical conductivity – used in reflectors, signs, busbars. |
| AA1100 | Commercial Pure Aluminium (99%) | A91100 | EN AW-1100 / DIN Al99.0 | A1100P | Soft, ductile, highly corrosion resistant; ideal for roofing, utensils, signage. |
| AA3003 | Aluminium-Manganese Alloy | A93003 | EN AW-3003 / DIN 3.0515 | A3003P | Good corrosion resistance, formability; used in cookware, chemical tanks, panels. |
| AA3105 | General Purpose Building Alloy | A93105 | EN AW-3105 / DIN 3.0517 | A3105P | Moderate strength, good corrosion resistance; roofing sheets, curtain walls, closures. |
| AA5005 | Architectural Alloy | A95005 | EN AW-5005 / DIN AlMg1(B) | A5005P | Excellent anodizing finish; used in architectural panels and façades. |
| AA5052 | Marine Grade Aluminium | A95052 | EN AW-5052 / DIN 3.3527 | A5052P | Good strength, very good corrosion resistance – ideal for marine and transport use. |
| AA5083 | High Strength Marine Alloy | A95083 | EN AW-5083 / DIN 3.3547 | A5083P | Excellent weldability and seawater resistance; shipbuilding, pressure vessels. |
| AA6061 | Structural / Aerospace Alloy | A96061 | EN AW-6061 / DIN 3.3211 | A6061P | High strength, good weldability – used in aircraft, automotive, and structural parts. |
| AA6063 | Architectural Alloy | A96063 | EN AW-6063 / DIN 3.32206 | A6063P | Excellent surface finish; commonly used in window frames, doors, and extrusions. |
| AA6082 | High Strength 6xxx Alloy | A96082 | EN AW-6082 / DIN 3.2315 | A6082P | High mechanical strength; ideal for structural sheets and heavy-duty applications. |
| AA7075 | Aerospace Alloy | A97075 | EN AW-7075 / DIN 3.4365 | A7075P | Very high strength-to-weight ratio; used in aerospace, tooling, and defence components. |
| AA8011 | Foil / Packaging Alloy | A98011 | EN AW-8011 / DIN 3.0205 | A8011P | Used for packaging, bottle caps, and household foil due to good ductility and corrosion resistance. |
Note: Equivalent names may vary slightly across standards. All materials supplied by Navkar Metal Syndicate are traceable to mill origin and supplied with Mill Test Certificates (EN 10204 3.1 / 3.2).
Common Product Forms & Dimensions
Navkar Metal Syndicate supplies Aluminium Sheets in a wide range of grades, tempers, thicknesses and standard stock sizes. The tables below summarise our most commonly supplied product forms and a size chart by grade & thickness for easy reference.
1. Common Product Forms & Dimensions
| Product Form | Typical Grades | Temper Options | Thickness Range (mm) | Standard Widths (mm) | Standard Lengths / Coil | Typical Applications |
|---|---|---|---|---|---|---|
| Mill Finish Sheet | 1050, 1100, 3003, 3105, 5005, 5052, 6061 | O, H14, H16, H18, H24, H32, T4, T6 | 0.40 – 6.00 | 1000, 1220, 1250, 1500 | 2000, 2440, 2500, 3000, 4000, 6000 | General fabrication, panels, enclosures, ducting, cladding. |
| Aluminium Plate | 5083, 5052, 5754, 6061, 6082, 7075 | H111, H112, H116, T4, T6 | 6.00 – 150.00+ | 1000, 1220, 1500, 2000 | 2000 – 8000 (cut-to-length available) | Marine & offshore, pressure vessels, moulds, machine beds, structures. |
| Chequered / Tread Plate (5-Bar / Diamond) | 3003, 3105, 5052, 5754 | H14, H22, H24 | 1.50 – 8.00 (base thickness) | 1000, 1220, 1250, 1500 | 2000, 2440, 2500, 3000 | Flooring, walkways, platforms, stairs, vehicle bodies. |
| Anodising Quality (AQ) Sheet | 5005, 6063, 1050A | H14, H16, H18 | 0.50 – 3.00 | 1000, 1220, 1500 | 2000, 2440, 3000, 4000 | Architectural façades, curtain wall, signboards, decorative panels. |
| Aluminium Coil (CR / HR) | 1050, 1100, 3003, 3105, 8011 | O, H14, H18, H24 | 0.18 – 3.00 | 150 – 1500 | Coils upto 3 MT; ID 150 / 300 / 508 mm | Roll forming, roofing, gutters, closures, slitting, stamping. |
| Precision Thin Sheet / Foil | 1100, 3003, 8011 | O, H18, H19 | 0.10 – 0.40 | 200 – 1200 | Coils & cut sheets as per order | Heat exchangers, packaging, HVAC fins, insulation. |
| Marine Grade Sheet | 5052, 5083, 5454, 5754 | H111, H116, H321 | 2.00 – 25.00 | 1500, 2000 | 3000 – 8000 (project-specific) | Shipbuilding, decks, hull plating, tankers, harbour equipment. |
2. Aluminium Sheet Size Chart by Grade & Thickness
The table below gives a practical overview of typical stock thicknesses and standard sheet sizes offered by Navkar Metal Syndicate for key grades. Non-standard sizes and cut-to-size blanks are available on request.
| Grade | Temper | Common Thicknesses (mm) | Standard Sheet Sizes (mm) | Typical Uses |
|---|---|---|---|---|
| 1050 / 1050A | O, H14, H24 | 0.40, 0.50, 0.71, 0.80, 1.0, 1.2, 1.5, 2.0, 3.0 | 1000 × 2000, 1220 × 2440, 1250 × 2500 | General fabrication, reflectors, signage, busbars, utensils. |
| 1100 | O, H14, H16, H18 | 0.40 – 4.00 | 1000 × 2000, 1220 × 2440, 1500 × 3000 | Roofing sheets, cladding, printing plates, light-gauge components. |
| 3003 | O, H14, H24 | 0.50, 0.80, 1.0, 1.2, 1.5, 2.0, 3.0, 4.0 | 1000 × 2000, 1220 × 2440, 1250 × 2500, 1500 × 3000 | Cookware, chemical tanks, panels, HVAC, tread plates. |
| 3105 | H14, H16, H18, H24 | 0.40 – 2.50 | 1000 × 2000, 1220 × 2440, 1500 × 3000 | Roofing, closures, sign boards, painted & coated sheet applications. |
| 5005 (AQ & Mill) | H14, H16, H18 | 0.50, 0.71, 1.0, 1.2, 1.5, 2.0, 3.0 | 1000 × 2000, 1250 × 2500, 1500 × 3000 | Architectural anodised panels, façades, decorative trims. |
| 5052 | H32, H34, H36 | 0.80, 1.0, 1.2, 1.5, 2.0, 3.0, 4.0, 5.0, 6.0 | 1000 × 2000, 1220 × 2440, 1500 × 3000, 1500 × 6000 | Marine panels, vehicle bodies, chemical equipment, tanks. |
| 5083 (Plate & Heavy Sheet) | H111, H116, H321 | 3.0, 4.0, 5.0, 6.0, 8.0, 10, 12, 16, 20, 25+ | 1500 × 3000, 1500 × 6000, 2000 × 6000, 2000 × 8000 | Shipbuilding, offshore structures, cryogenic & pressure vessel plate. |
| 5754 | H111, H22, H24 | 2.0 – 10.0 | 1250 × 2500, 1500 × 3000, 1500 × 6000 | Automotive, marine components, chequered plates, decks. |
| 6061 | T4, T6 | 1.5, 2.0, 3.0, 4.0, 5.0, 6.0, 8.0, 10, 12, 16, 20+ | 1220 × 2440, 1250 × 2500, 1500 × 3000, 1524 × 3048 | Structural components, jigs & fixtures, frames, machine parts. |
| 6082 | T6, T651 | 4.0 – 150+ | 1250 × 2500, 1500 × 3000, 2000 × 4000 | High-strength structural plate, cranes, transport & bridges. |
| 7075 | T6, T651 | 6.0 – 100+ | 1220 × 2440, 1524 × 3048 (and project sizes) | High-strength aerospace & tooling plate, defence, mould bases. |
| 8011 (Sheet / Light Gauge) | O, H14, H18 | 0.10 – 0.80 | 500 – 1250 width in coils, cut lengths as per order | Packaging, closures, heat exchanger fins, foils. |
Note: The above thicknesses and sizes are indicative of common production and stock ranges at Navkar Metal Syndicate. Custom thicknesses, non-standard dimensions, sheared blanks, circle cuttings, and project-specific plates are available upon request with full Mill Test Certificates.
