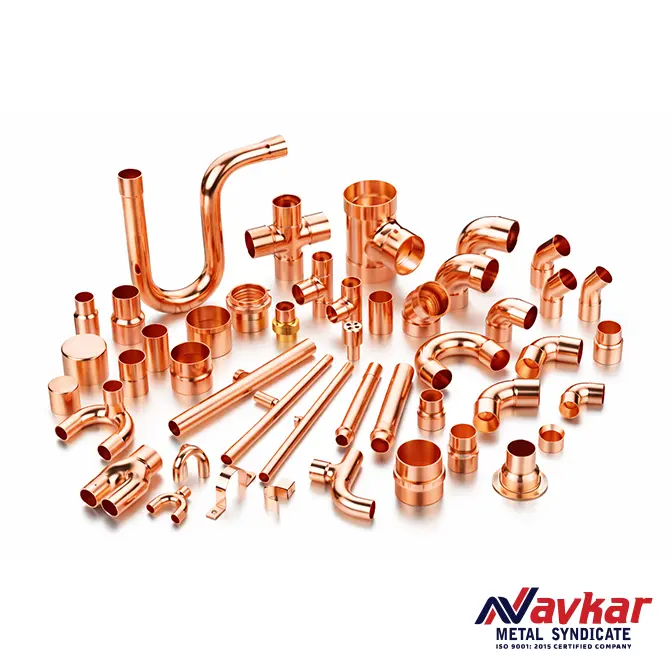

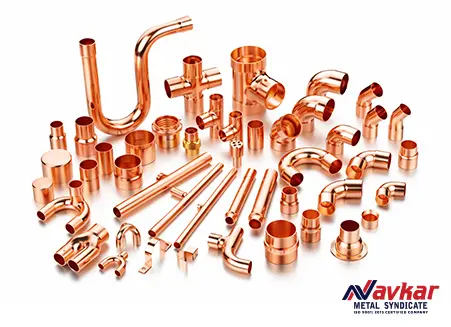

Copper Fittings

Customization:

Navkar Metal Syndicate provides custom-designed fittings for specialized industrial projects, including non-standard angles, flanges, and threaded connections. All fittings are factory-tested for pressure and leak integrity to guarantee system reliability and compliance with international standards.

Copper Fittings – Types and Applications

Elbows: Copper elbows are engineered to alter the direction of piping systems efficiently while minimizing space requirements. The most commonly used are 90° and 45° radius elbows, which provide smooth directional transitions. Specialized elbows with varying radii are also available to meet unique design or spatial requirements.

U-Bends: Designed to facilitate coolant return flow or achieve a 180° rotation within compact spaces, U-bends are essential in heat exchangers, condensers, and evaporators. We manufacture both standard and expanded U-bends to suit specific industrial and HVAC applications.

Couplings: Couplings are used to join two copper tubes of the same diameter. For pipes of differing sizes, reducing couplings are provided, enabling seamless connections without compromising system integrity.

Tees: Tee fittings, shaped like the letter “T,” allow the creation of branch connections from a continuous pipeline. Variants include:

Reducing Tee: One end of the tee has a smaller diameter, enabling connections between pipes of different sizes.

Cross Tee: Designed to join four pipes when the vertical section is threaded, providing multi-branching capabilities. Tee fittings are among the most versatile and widely used fittings in copper piping systems.

Reducers: Copper reducers are specifically designed to join two pipes of different diameters in a single fitting. Standard sizes include 1/2" x 3/8", 1/2" x 1/4", 5/8" x 3/8", 5/8" x 1/4", 3/4" x 1/2", 5/8" x 1/2", 1" x 3/4", 1" x 1/2", and custom sizes as per client specifications.

Non-Standard / Custom Fittings: Navkar Metal Syndicate also offers bespoke copper fittings, manufactured according to customer designs and specifications. These custom solutions ensure precise compatibility with specialized projects in HVACR systems, medical gas pipelines, industrial fluid handling, and other technical applications.

Applications:

Domestic and industrial plumbing systems.

HVAC and refrigeration pipelines.

Compressed air and gas distribution.

Medical gas pipelines.

Solar thermal heating and hot water distribution.

Fire sprinkler systems.

Industrial fluid handling and processing.

Electrical busbar connections (for specific conductive fittings).

Marine and offshore piping systems.

Food-grade and potable water installations.
