Navkar Metal Syndicate is a trusted manufacturer, stockist, and exporter of Aluminium Sections in various shapes, profiles, and finishes suitable for structural, architectural, and industrial applications. Our aluminium sections are produced using premium-grade alloys like 6061, 6063, 6082, 6005, and 6463, ensuring superior strength, corrosion resistance, and aesthetic appeal.
These sections are manufactured through precision extrusion processes that allow for consistent dimensional accuracy, smooth surface finish, and excellent mechanical performance. Aluminium sections from Navkar Metal Syndicate are available in mill finish, anodized, powder-coated, or brushed forms and can be custom-fabricated to meet specific design or engineering requirements.

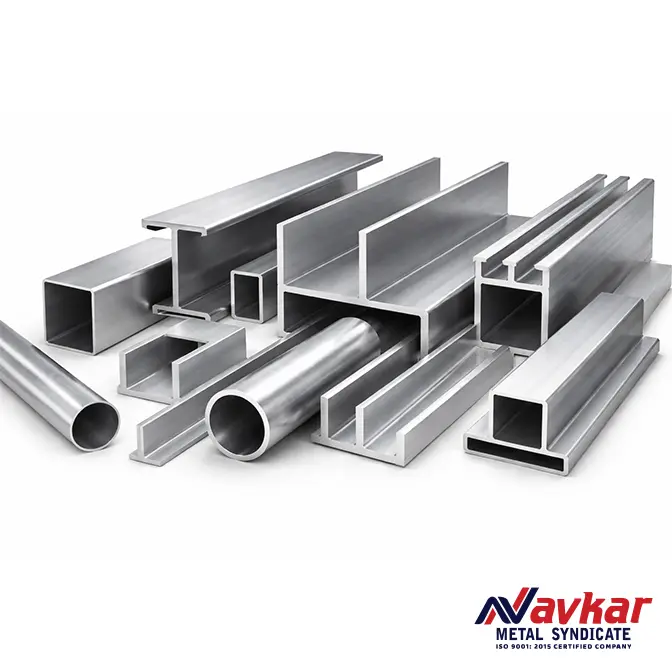

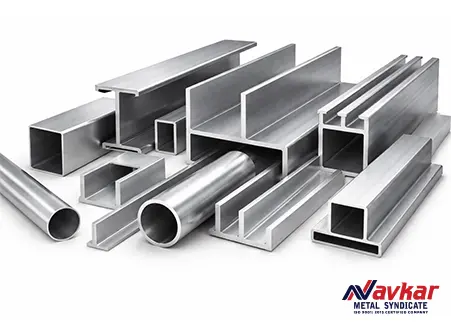

Types of Aluminium Sections Offered
- Aluminium Angles – Equal & unequal angles for structural framing and supports.
- Aluminium Channels – U, C, and custom channel profiles used in construction and machinery.
- Aluminium Tee Sections – T-shaped sections for reinforcement and load-bearing assemblies.
- Aluminium Flat Sections – Precision-milled flats ideal for general fabrication and engineering.
- Aluminium Square & Rectangular Profiles – Hollow or solid extrusions for architectural and industrial use.
- Aluminium Round Sections – Solid bars and rods for machining and general mechanical applications.
- Custom Extruded Sections – Made to order based on CAD drawings or specific dimensional requirements.
Available Alloys & Tempers
We offer aluminium sections in a variety of alloys such as 6061-T6, 6063-T5/T6, 6082-T6, and 6005A-T6 to suit different mechanical and fabrication needs. These alloys combine high strength-to-weight ratio with excellent corrosion resistance and weldability.
Applications
Aluminium sections are extensively used across multiple industries including:
- Architectural and structural frameworks
- Transportation – automotive, railways, and aerospace
- Electrical enclosures and busbar systems
- Furniture, display systems, and modular partitions
- Heat exchangers, machinery frames, and marine structures
Product Range & Customization
Standard aluminium sections are available from 10 mm to 300 mm in width or diameter, with thickness ranging from 1 mm to 25 mm depending on the profile type. We also offer:
- Cut-to-length supply
- Precision machining & drilling
- Anodized or powder-coated finish options
- Custom shapes and proprietary extrusion dies
Each aluminium section is produced in compliance with ASTM B221 / EN 755 / IS 737 standards and is supplied with complete mill test certification (MTC) to ensure material traceability and performance reliability.
Chemical Composition
Navkar Metal Syndicate offers aluminium sections manufactured from premium alloys such as 6061, 6063, 6082, 6005, and 6463. Each alloy conforms to international quality standards (ASTM B221 / EN 573 / IS 737) and exhibits excellent balance between strength, machinability, and corrosion resistance. The table below outlines the typical chemical composition (% by weight) of these commonly used aluminium extrusion alloys.
| Alloy Grade | Si (Silicon) | Fe (Iron) | Cu (Copper) | Mn (Manganese) | Mg (Magnesium) | Cr (Chromium) | Zn (Zinc) | Ti (Titanium) | Al (Aluminium) |
|---|---|---|---|---|---|---|---|---|---|
| 6061 | 0.40 – 0.80 | 0.70 max | 0.15 – 0.40 | 0.15 max | 0.80 – 1.20 | 0.04 – 0.35 | 0.25 max | 0.15 max | Balance |
| 6063 | 0.20 – 0.60 | 0.35 max | 0.10 max | 0.10 max | 0.45 – 0.90 | 0.10 max | 0.10 max | 0.10 max | Balance |
| 6082 | 0.70 – 1.30 | 0.50 max | 0.10 max | 0.40 – 1.00 | 0.60 – 1.20 | 0.25 max | 0.20 max | 0.10 max | Balance |
| 6005 | 0.50 – 0.90 | 0.35 max | 0.10 max | 0.10 max | 0.40 – 0.70 | 0.10 max | 0.10 max | 0.10 max | Balance |
| 6463 | 0.20 – 0.60 | 0.15 – 0.35 | 0.10 max | 0.05 max | 0.45 – 0.90 | 0.05 – 0.15 | 0.05 – 0.15 | 0.05 – 0.10 | Balance |
Note: The above values are nominal and may vary slightly depending on the specific temper (e.g., T5, T6) and manufacturing standards. All compositions are controlled within the limits prescribed by ASTM B221 / EN 573-3 / IS 737.
Mechanical, Physical & Fabrication Properties
Navkar Metal Syndicate supplies aluminium sections in high-performance alloys such as 6061, 6063, 6082, 6005 and 6463, in tempers like T4, T5, T6 and customised conditions. These alloys offer an excellent balance of strength, weight, corrosion resistance and formability, making them ideal for structural, architectural, transport and general engineering applications.
Typical Mechanical & Physical Properties
| Alloy (Typical Temper) |
Mechanical Properties (Typical) | Physical Properties | ||||||
|---|---|---|---|---|---|---|---|---|
| Tensile Strength (MPa) |
Yield Strength 0.2% (MPa) |
Elongation (% in 50 mm) |
Hardness (HB approx.) |
Density (g/cm³) |
Elastic Modulus (GPa) |
Thermal Conductivity (W/m·K) |
Electrical Conductivity (% IACS) |
|
| 6061-T6 | 260 – 310 | 240 – 275 | 8 – 12 | 90 – 100 | 2.70 | 68 – 71 | 150 – 170 | 38 – 43 |
| 6063-T5 / T6 | 190 – 240 | 140 – 200 | 10 – 16 | 60 – 80 | 2.70 | 68 – 71 | 190 – 210 | 45 – 50 |
| 6082-T6 | 290 – 340 | 250 – 300 | 8 – 12 | 90 – 100 | 2.70 | 68 – 72 | 150 – 180 | 32 – 38 |
| 6005 / 6005A-T5 | 240 – 270 | 200 – 230 | 8 – 12 | 75 – 90 | 2.70 | 68 – 72 | 170 – 190 | 38 – 45 |
| 6463-T5 (Bright Finish) | 180 – 230 | 130 – 180 | 8 – 12 | 60 – 80 | 2.70 | 68 – 71 | 190 – 210 | 45 – 50 |
Note: Values above are typical for guidance only and can vary with exact temper, section geometry, and relevant product standards (ASTM B221, EN 755, IS / BIS equivalents). Project-specific MTCs (Mill Test Certificates) are supplied with actual measured values for each heat/lot.
Fabrication Characteristics
| Alloy | Weldability (MIG / TIG) |
Formability / Bending | Machinability | Surface Finish & Anodising Response |
|---|---|---|---|---|
| 6061 | Very good; suitable for structural welds (use compatible filler such as 4043 / 5356). | Good in O/T4; in T6 condition bending radius should be larger to avoid cracking. | Good; can be precision machined, drilled and tapped; widely used for CNC profiles. | Good natural finish; takes clear and coloured anodising with uniform appearance. |
| 6063 | Excellent weldability for architectural and window/door systems. | Excellent extrudability and cold formability, ideal for complex hollow & thin-wall sections. | Fair to good; best with sharp tools and proper lubrication. | Excellent anodising; high quality decorative and architectural finishes (matte / bright). |
| 6082 | Good weldability; preferred for structural applications, some loss of strength in HAZ. | Moderate; stronger alloy so requires larger bend radii, better in softer tempers. | Good; suitable for machining heavy structural components and precision parts. | Good general anodising response with decent colour uniformity. |
| 6005 / 6005A | Good weldability for frames, ladders, platforms and transport structures. | Good; balances strength and formability; used commonly for structural extrusions. | Good; acceptable surface finish after machining. | Good anodising and powder-coating response for architectural use. |
| 6463 | Good weldability for light architectural and decorative profiles. | Good; suitable for intricate shapes and small decorative sections. | Fair; designed more for surface quality than aggressive machining. | Excellent for bright anodised and mirror-like decorative finishes. |
Processing at Navkar Metal Syndicate: Aluminium sections can be supplied in mill finish, anodised, powder coated or mechanically polished, with cut-to-length, drilling, punching and fabrication options available on request for project-specific requirements.
Applications
Navkar Metal Syndicate supplies a comprehensive range of Aluminium Sections in alloys such as 6061, 6063, 6082, 6005, and 6463, used across multiple industries. Their versatility, light weight, and resistance to corrosion make them ideal for structural, architectural, electrical, and transport applications worldwide.
| Industry / Sector | Typical Applications | Recommended Alloys / Tempers |
|---|---|---|
| Architectural & Construction | Window and door frames, curtain walls, facades, handrails, modular partitions, canopy supports, roofing and framing systems. | 6063-T5 / 6063-T6, 6463-T5 (Bright Anodised), 6005A-T6 |
| Transportation | Bus body structures, truck frames, railway coaches, shipbuilding, cargo flooring, and vehicle roof rails. | 6061-T6, 6082-T6, 6005-T6 |
| Electrical & Power | Busbars, cable trays, transformer enclosures, power distribution supports, and electrical control panels. | 6061-T6, 6063-T6, 1050A, 1350 |
| Industrial & Mechanical | Machine frames, conveyors, workstations, modular assembly structures, and heat exchanger frames. | 6061-T6, 6082-T6, 6005A-T6 |
| Furniture & Interior Design | Modular furniture frames, display racks, shelving, partitions, and decorative trims. | 6063-T5, 6463-T5 (Anodised Decorative) |
| Solar & Renewable Energy | Solar panel mounting structures, PV module frames, brackets, and wind turbine components. | 6061-T6, 6082-T6, 6005A-T6 |
| Marine & Offshore | Boat hulls, masts, railings, offshore platforms, and deck structures requiring high corrosion resistance. | 6061-T6, 6082-T6, 5083-H116 |
| Aerospace & Defence | Aircraft interiors, cargo floors, lightweight frame sections, and precision-machined structural profiles. | 6061-T6, 6082-T6, 7075-T6 |
| Signage & Display Systems | Advertising frames, display stands, light box extrusions, and banner support sections. | 6063-T5, 6463-T5 (Bright Finish) |
| General Fabrication & Engineering | Custom extrusions, brackets, mechanical supports, and precision fabricated assemblies. | 6061-T6, 6082-T6, 6005A-T6 |
Note: The alloy and temper selection depends on required strength, corrosion resistance, surface finish, and fabrication process. Navkar Metal Syndicate also offers anodising, powder coating, machining, and custom extrusion support for project-based requirements.
Standards & International Equivalents:
Navkar Metal Syndicate supplies aluminium sections manufactured and tested as per major international standards. The table below lists commonly used alloys for extruded sections (profiles, channels, angles, tubes, etc.) along with their typical standards and international equivalents.
| Alloy / Temper (Typical for Sections) |
AA / ASTM Designation | EN / European | DIN / ISO | JIS | IS / Other Notes |
|---|---|---|---|---|---|
| 6063-T5 / T6 |
AA 6063 ASTM B221 (Extruded Bars, Rods, Shapes & Tubes) |
EN AW-6063 EN 573-3 / EN 755 (Extruded profiles & rods) |
DIN 3.32206 EN 755-9 dimensional tolerances |
JIS H 4100 6063 |
IS 733 / IS 1285 (Aluminium Extrusions) Widely used as architectural section grade |
| 6061-T6 |
AA 6061 ASTM B221 / B241 (Extruded Shapes & Tubes) |
EN AW-6061 EN 573-3 / EN 755 series |
DIN AlMg1SiCu ISO AlMg1SiCu |
JIS H 4000 / H 4100 6061 |
IS 64430 series (where applicable) Structural & high-strength sections |
| 6082-T6 / T651 |
AA 6082 ASTM B221 (limited use in some regions) |
EN AW-6082 EN 573-3 / EN 755-2 (Mechanical properties) |
DIN AlSi1MgMn ISO AlSi1MgMn |
JIS – Closest functional equivalents in 6xxx series | Common in Europe & UK for structural sections, frames & machined parts |
| 6005 / 6005A-T5 / T6 |
AA 6005 / 6005A ASTM B221 (Extrusions) |
EN AW-6005A EN 573 / EN 755 series |
DIN AlSiMg(A) | JIS H 4100 6005A (where specified) | Used for medium–high strength hollow profiles & structural extrusions |
| 6463-T5 / T6 |
AA 6463 ASTM B221 (Extruded Bars, Rods, Profiles & Tubes) |
EN AW-6463 EN 573 / EN 755 |
DIN AlMg0.7Si(B) | JIS – Decorative 6xxx equivalents | Bright anodising architectural & decorative sections |
| 6101-T61 / T63 (Busbar sections) |
AA 6101 ASTM B317 / B317M (Extruded Bars, Rods, Wire, Shapes) |
EN AW-6101 (where specified) | DIN / ISO – Conductive Al-Mg-Si variants | JIS – Power-conductor aluminium alloys | Electrical busbar & high-conductivity power sections |
| 1050 / 1100 (Commercially Pure) |
AA 1050 / 1100 ASTM B221 / B210 (Extruded shapes & tubes) |
EN AW-1050A / EN AW-1100 EN 573-3 / EN 755 |
DIN Al99.5 / Al99.0 | JIS A1050 / A1100 | Used for low-strength, high-ductility & high-conductivity sections |
| 3003 / 3103 (Non-heat-treatable) |
AA 3003 ASTM B221 / B210 (limited extruded forms) |
EN AW-3003 / EN AW-3103 EN 573-3 / EN 755 |
DIN AlMnCu / AlMn1 | JIS A3003 | General engineering, HVAC, fins & non-structural sections |
| AA 7005 / 7020 (Structural / Bicycle Sections) |
AA 7005 / 7020 ASTM – Application-specific use |
EN AW-7005 / EN AW-7020 EN 573-3 |
DIN / ISO AlZnMg alloys | JIS – High strength 7xxx series | High-strength extruded sections for frames, bicycles, special structures |
| General Section Standards | ASTM B221 – Aluminium & Aluminium-Alloy Extruded Bars, Rods, Wire, Profiles & Tubes |
EN 573 (Chemical Composition) EN 755-1/2/3/9 (Extruded Rods, Bars, Tubes & Profiles) |
DIN 1725 / DIN EN 755 ISO 6361, ISO 6362 |
JIS H 4100, H 4040 – Extruded shapes & tubes | IS 733, IS 1285 – Wrought Aluminium & Aluminium-Alloy Extrusions |
Note: Standards and equivalents are indicative and may vary with specific product form (angle, channel, T-section, hollow profile, custom extrusion) and customer specifications. For project-critical documentation, Navkar Metal Syndicate supplies full Mill Test Certificates (MTCs) and standard references with each shipment.
Common Names & International Identifiers
Navkar Metal Syndicate supplies a wide range of Aluminium Sections such as angles, channels, T-sections, tubes, and custom extrusions in various alloys. Below is a table of commonly used international identifiers, trade names, and equivalent codes that help identify these alloys globally.
| Alloy / Temper | AA Designation | UNS No. | EN / WNR No. | Common / Trade Name | Typical Product Form |
|---|---|---|---|---|---|
| 6063-T5 / T6 | AA 6063 | A96063 | EN AW-6063 / 3.32206 | Architectural Aluminium, AlMg0.7Si | Window frames, door sections, architectural extrusions |
| 6061-T6 | AA 6061 | A96061 | EN AW-6061 / 3.3211 | Structural Aluminium, AlMg1SiCu | Structural sections, industrial frameworks, marine fittings |
| 6082-T6 | AA 6082 | A96082 | EN AW-6082 / 3.2315 | High Strength Structural Aluminium, AlSi1MgMn | Heavy duty frames, machinery parts, transport sections |
| 6005 / 6005A-T5 | AA 6005 / 6005A | A96005 / A96005A | EN AW-6005A / 3.3210 | Medium Strength Extrusion Alloy | Transport profiles, bridges, industrial extrusions |
| 6463-T5 | AA 6463 | A96463 | EN AW-6463 / 3.32206 | Bright Finish Alloy, AlMg0.7Si(B) | Decorative and anodized architectural sections |
| 6101-T61 / T63 | AA 6101 | A96101 | EN AW-6101 | Electrical Conductor Aluminium | Busbar and electrical conductive extrusions |
| 1050 / 1100 | AA 1050 / AA 1100 | A91050 / A91100 | EN AW-1050A / EN AW-1100 | Commercially Pure Aluminium | Decorative extrusions, chemical and food industry fittings |
| 3003 / 3103 | AA 3003 / AA 3103 | A93003 / A93103 | EN AW-3003 / EN AW-3103 | General Engineering Alloy | HVAC fins, radiator frames, and lightweight extrusions |
| 7005 / 7020 | AA 7005 / AA 7020 | A97005 / A97020 | EN AW-7005 / EN AW-7020 | High Strength Aluminium-Zinc-Magnesium | Bicycle frames, transport & aerospace extrusions |
| 5083 / 5052 | AA 5083 / AA 5052 | A95083 / A95052 | EN AW-5083 / EN AW-5052 | Marine & Corrosion Resistant Aluminium | Shipbuilding, offshore platforms, and marine sections |
Note: The above designations represent typical international equivalents. Actual identifiers may vary depending on national standards, product dimensions, or special alloy variants. Navkar Metal Syndicate ensures that every section supplied meets the relevant AA, EN, ASTM, JIS, or IS specifications with full traceability and certification.
Common Product Forms & Dimensions
Navkar Metal Syndicate supplies aluminium sections in a wide range of standard and custom profiles, primarily in structural and extrusion grades such as 6061, 6063, 6082, 6005 and related tempers (T4, T5, T6, T651, etc.). The tables below give typical product forms, dimensional ranges and indicative size/weight data (actual availability may vary by grade and project).
Common Product Forms & Dimensional Ranges
| Section Type | Typical Grades | Standard Size Range (mm) | Typical Thickness Range (mm) | Common Tempers | Typical Uses |
|---|---|---|---|---|---|
| Equal Angles (L) | 6061, 6063, 6082 | 20 × 20 to 150 × 150 | 2.0 to 12.0 | T5, T6, T651 | Frames, bracings, architectural trims, light structures |
| Unequal Angles | 6061, 6082 | 40 × 20 to 200 × 100 | 3.0 to 12.0 | T6, T651 | Structural supports, ladders, platforms |
| Channels (C / U / PFC) | 6061, 6082 | Web: 25–300, Flange: 10–100 | 3.0 to 12.0 | T5, T6 | Portal frames, racking, trailers, machinery bases |
| I / H Beams | 6061, 6082 | Height: 100–300, Flange: 50–150 | 4.0 to 12.0 (web), 6.0 to 20.0 (flange) | T6, T651 | Structural beams, walkways, marine & offshore skids |
| T Sections | 6063, 6061 | Flange: 25–150, Stem: 20–150 | 2.0 to 10.0 | T5, T6 | Glazing frames, architectural fins, stiffeners |
| Flat Bars / Strips | 6061, 6082, 1050, 5083 | Width: 10–300, Thickness: 3–60 | 3.0 to 60.0 | T5, T6, H111, H112 | Machined components, flanges, bus bars, brackets |
| Square Bars | 6061, 6082 | 10 × 10 to 150 × 150 | Solid | T6, T651 | Shafts, fasteners, general machining |
| Round Bars / Rods | 6061, 6082, 2011, 2014, 7075 | Ø 6–300 | Solid | T6, T651, T6511 | Turned components, aerospace parts, jigs & fixtures |
| Square Hollow Sections (SHS) | 6061, 6063, 6082 | 20 × 20 to 200 × 200 | 2.0 to 10.0 | T5, T6 | Architectural frames, gates, handrails, supports |
| Rectangular Hollow Sections (RHS) | 6061, 6063, 6082 | 30 × 20 to 250 × 100 | 2.0 to 10.0 | T5, T6 | Frames, trusses, conveyor supports, enclosures |
| Round Tubes (Structural / Architectural) | 6063, 6061 | Ø 12–300 | 1.2 to 10.0 | T5, T6 | Handrails, balustrades, furniture, light structures |
| Custom & Precision Profiles | 6063, 6060, 6005, 6061 | As per drawing | 1.0 to 10.0+ | T4, T5, T6 | Architectural, electrical, automotive, OEM systems |
Illustrative Size & Weight Chart by Grade & Thickness
The following size chart gives indicative weights (kg/m) for some common aluminium section sizes. Density assumed ≈ 2.70 g/cm³. Actual weights may vary slightly by alloy and tolerances.
| Grade | Section Type | Nominal Size (mm) | Thickness (mm) | Approx. Weight (kg/m) | Typical Application |
|---|---|---|---|---|---|
| 6063-T5 | Equal Angle | 25 × 25 | 3.0 | ≈ 0.38 | Window frames, light brackets, trims |
| 6063-T5 | Equal Angle | 40 × 40 | 5.0 | ≈ 1.01 | Facade framing, door frames, supports |
| 6063-T5 | RHS | 50 × 25 | 2.0 | ≈ 1.11 | Light structural frames, furniture |
| 6063-T5 | Round Tube | Ø 50 | 2.0 | ≈ 0.80 | Handrails, balustrades |
| 6061-T6 | Flat Bar | 50 × 6 | 6.0 | ≈ 0.81 | Machined parts, brackets, flanges |
| 6061-T6 | Flat Bar | 75 × 10 | 10.0 | ≈ 2.03 | Heavy brackets, base plates |
| 6061-T6 | Equal Angle | 50 × 50 | 6.0 | ≈ 1.52 | Structural frames, platforms |
| 6061-T6 | Channel (C) | 100 (web) × 50 (flange) | 5.0 | ≈ 3.5 | Skids, machine frames, truck bodies |
| 6082-T6 | Square Bar | 40 × 40 | Solid | ≈ 4.32 | Machined blocks, tooling, jigs |
| 6082-T6 | RHS | 100 × 50 | 6.0 | ≈ 4.76 | Structural frames, trailers |
| 6082-T6 | Round Tube (Heavy) | Ø 100 | 5.0 | ≈ 4.20 | Columns, mast sections, marine structures |
| 6005-T5 | Channel (PFC) | 150 (web) × 75 (flange) | 6.0 | ≈ 7.10 | Solar module frames, structural supports |
| 6101-T6 | Flat & Slot Sections | 50 × 10 | 10.0 | ≈ 1.35 | Bus bars, electrical conductors |
| 6061 / 6063 / 6082 | SHS | 50 × 50 | 3.0 | ≈ 1.53 | Handrails, frames, guards, enclosures |
| 6061 / 6063 / 6082 | SHS | 100 × 100 | 5.0 | ≈ 5.40 | Heavy structural frames, towers |
Note: The above size and weight values are indicative for design and enquiry purposes. Navkar Metal Syndicate can supply aluminium sections cut-to-length, in custom grades, tempers and special profiles as per customer drawings and international standards.
